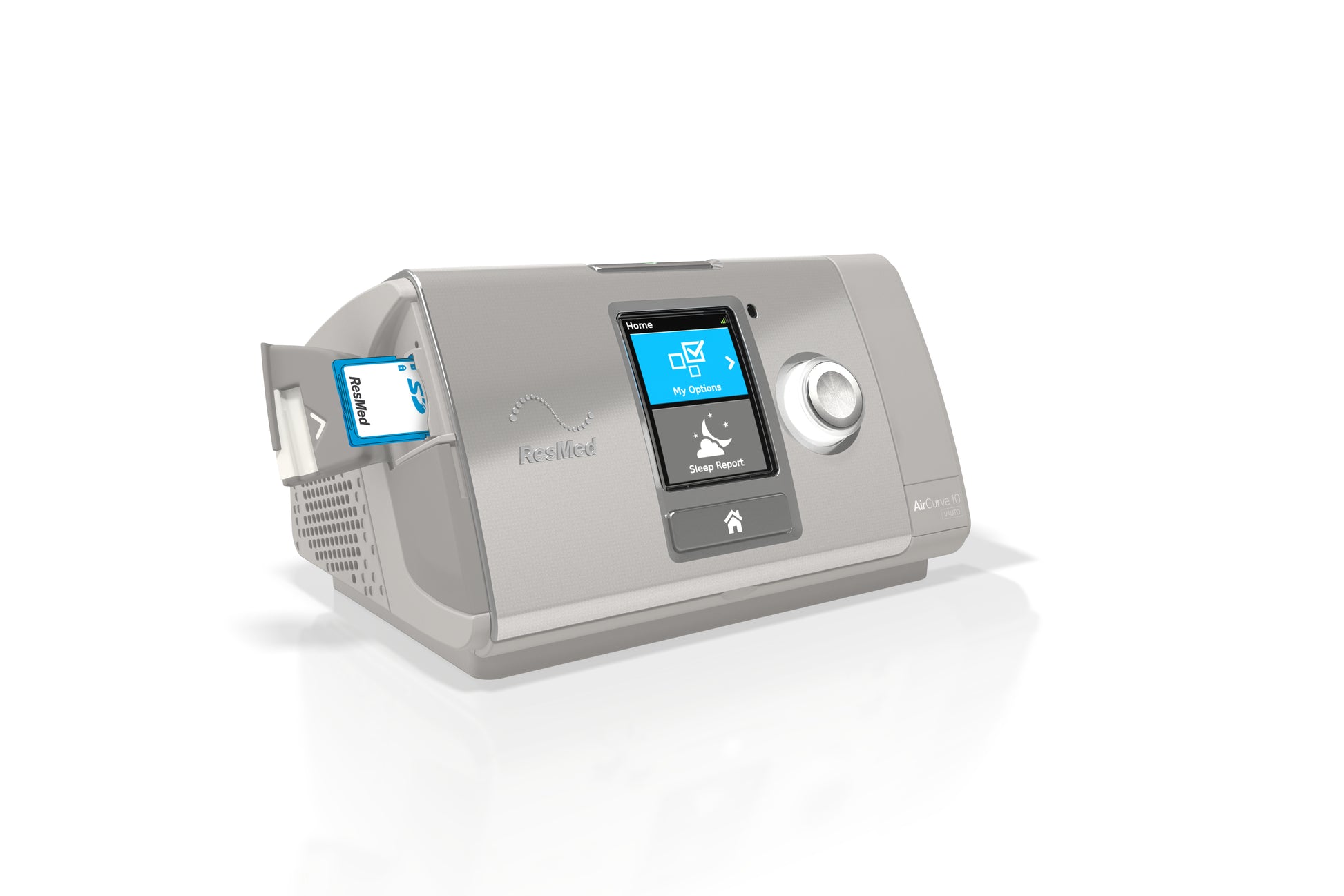

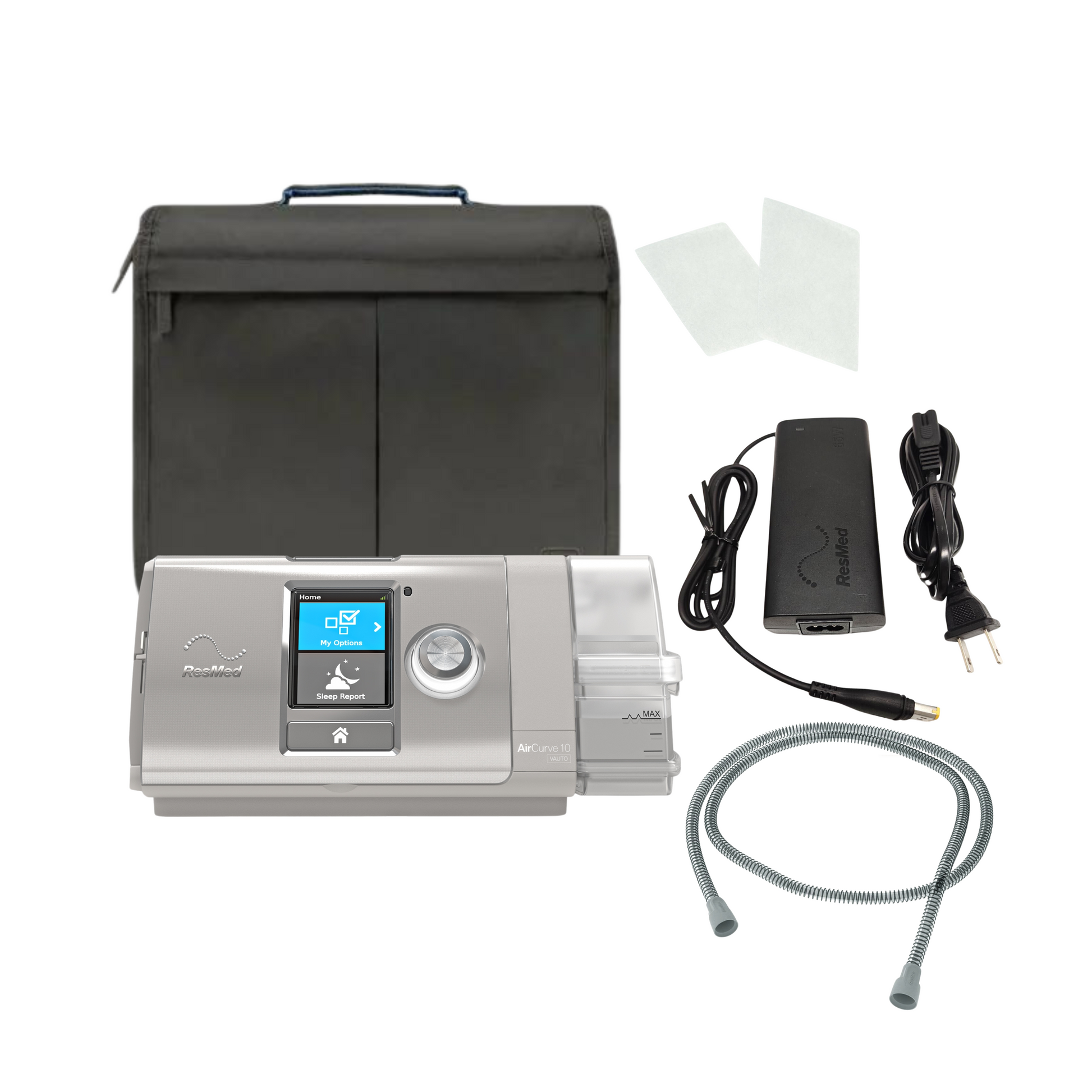

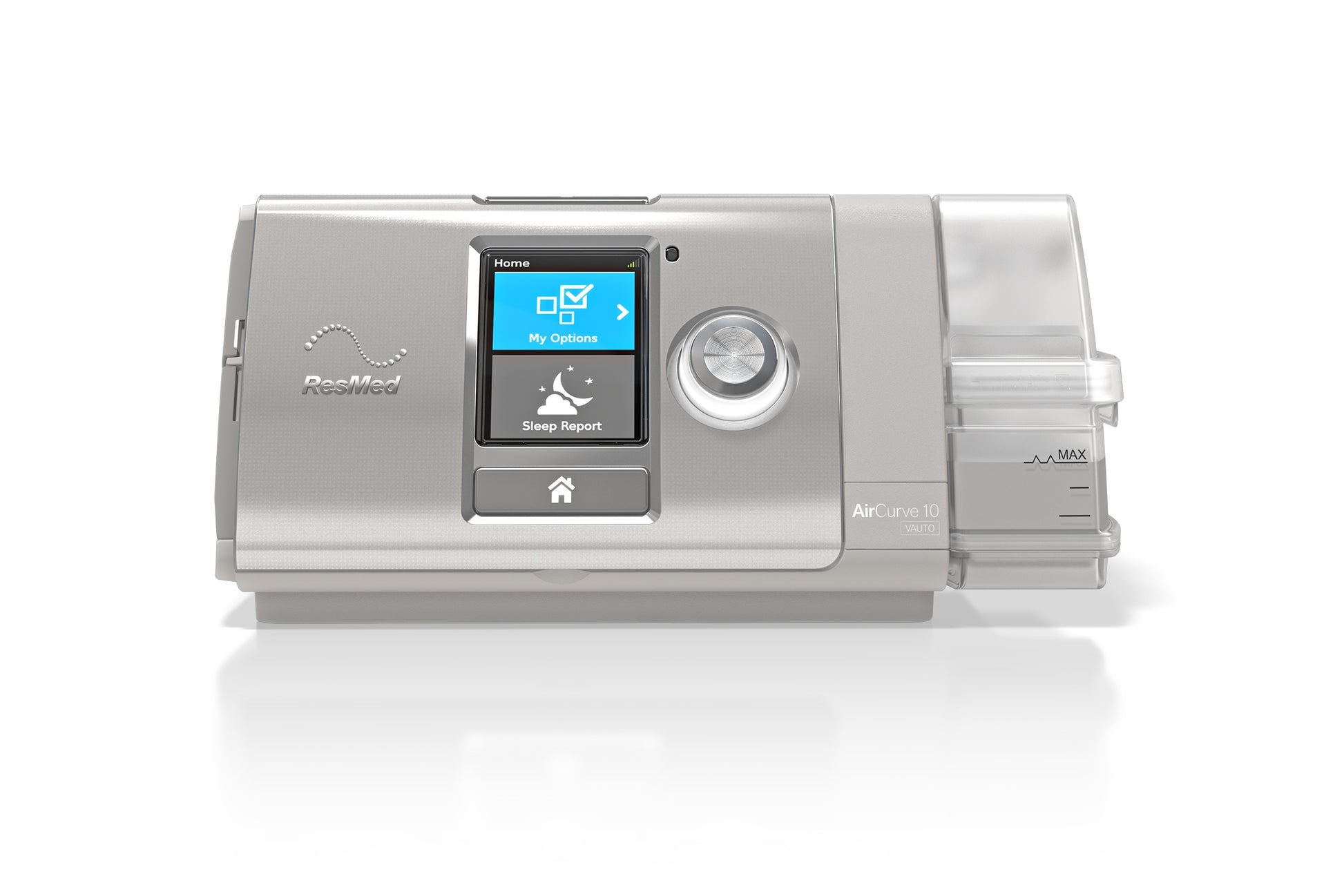

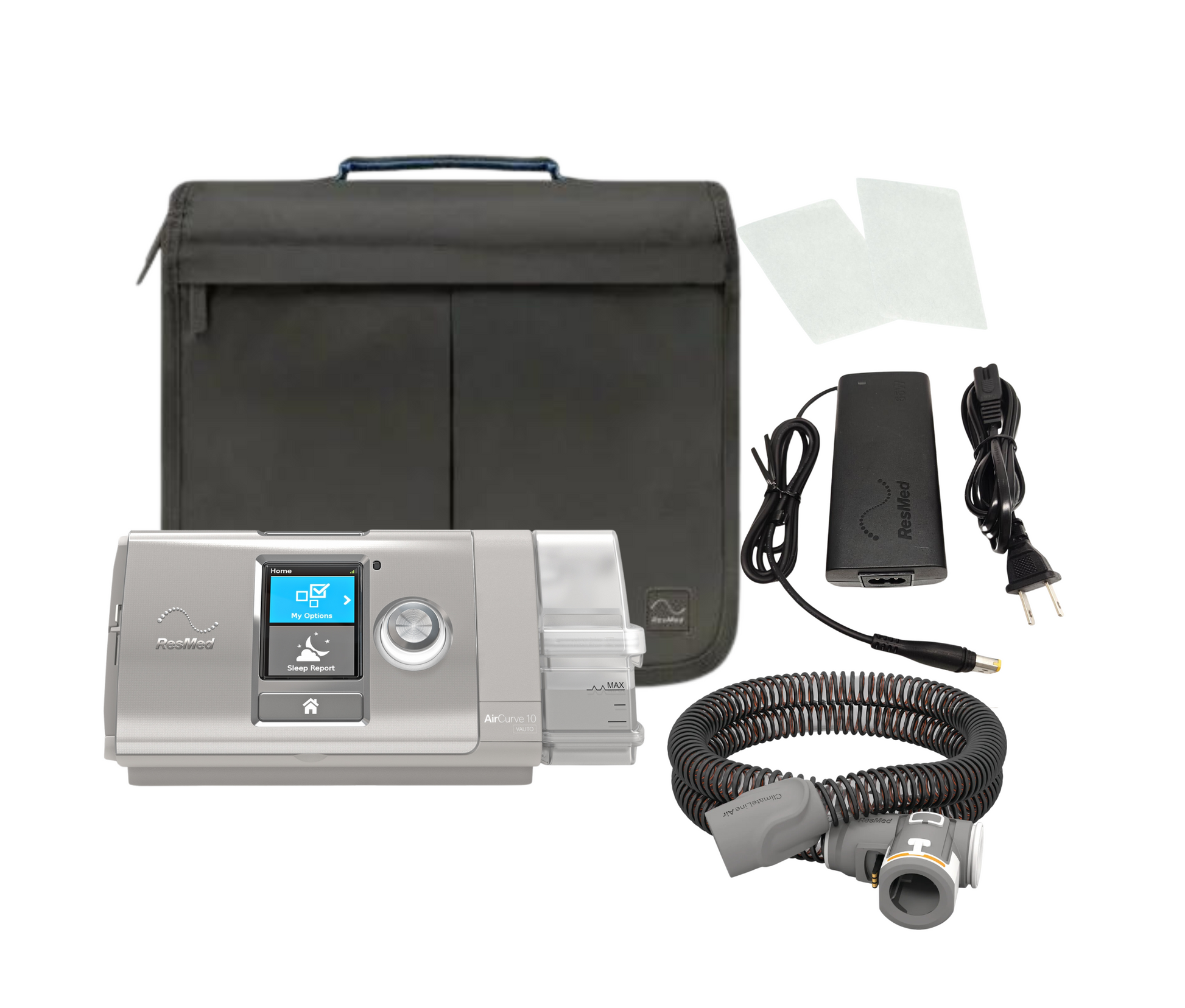

AirCurve 10 VAuto BiLevel Machine with HumidAir and Heated Humidifier

Auto-Adjusting CPAP Machine with Built-In HumidAir Heated Humidifier

Standard Humidifier Chamber

ClimateLine or SlimLine Tubing (15mm Diameter)

1 SD Card (Installed) with SD Card Envelope

Power Supply and Cord

Travel Bag for Convenience

1 Standard Filter (Installed) with Filter Cover

Patient Manual

Advanced BiLevel Pressure Support: The AirCurve 10 VAuto delivers optimal breathing support with its adjustable dual pressure settings, providing a seamless transition between inhalation and exhalation. This adaptive technology ensures a customized therapy experience tailored to your specific needs.

Easy-Breathe Technology: Experience natural and comfortable breathing with the Easy-Breathe pressure waveform, which mimics the natural wave shape of normal breathing. This feature enhances your comfort by replicating the natural rhythm of your breath.

Integrated HumidAir™ and Heated Humidifier: The built-in HumidAir™ system and heated humidifier deliver consistent, adjustable humidification to prevent dryness and irritation. Coupled with the ClimateLineAir™ heated tube (optional), the device automatically regulates temperature and humidity for an optimal therapy experience.

Climate Control: Enjoy hassle-free comfort with Climate Control technology. This feature maintains the perfect balance of temperature and humidity throughout your therapy, automatically adjusting based on the room’s conditions.

Continuous Leak Management: The AirCurve 10 VAuto is equipped with Vsync technology to manage leaks effectively, ensuring reliable delivery of therapy pressure and maintaining synchrony between the device and your breathing.

Whisper-Quiet Operation: The advanced Easy-Breathe motor operates at a remarkably low noise level of just 27 dB, creating a peaceful sleep environment for you and your partner.

Adaptive Pressure Adjustment: The machine’s SmartStart feature detects your breathing and initiates therapy automatically, while adjustable pressure settings adapt to your needs for optimal comfort.

Customizable Settings: The user-friendly color LCD display allows you to easily adjust settings such as Ramp Time, SmartStart, Humidity Level, and more. Use the intuitive dial to fine-tune your therapy experience.

Enhanced Data Reporting: Track and analyze your therapy progress with up to 365 sessions of comprehensive data reporting. The device’s memory stores detailed reports, and an SD card is included for easy data download.

TiControl Technology: Customize your therapy with TiControl settings that include TiMax, TiMin, Trigger, and Cycle, allowing precise adjustments to inhalation and exhalation times to enhance your comfort and reduce sleep disruptions.

Ambient Light Sensor: The built-in sensor adjusts the screen’s brightness according to the room’s light level, ensuring minimal disturbance if you need to get up during the night.

Portable and Travel-Friendly: Weighing less than three pounds and meeting FAA standards, the AirCurve 10 VAuto is ideal for travel and provides dependable therapy wherever you go.

Cloud-Based AirView™ Management: The Card-to-Cloud feature allows secure, remote access to therapy data through the AirView™ system. This enables convenient monitoring, troubleshooting, and adjustments from your healthcare provider.

Device Type: BiLevel Positive Airway Pressure (BiPAP) Machine

Pressure Range: Inhalation Pressure (IPAP): 4 to 25 cm H2O Exhalation Pressure (EPAP): 4 to 25 cm H2O

Modes: VAuto Mode (Auto-adjusting BiLevel) CPAP Mode (Continuous Positive Airway Pressure) Humidification System: Integrated HumidAir™ heated humidifier with ClimateLineAir™ heated tube compatibility Humidity Settings: Adjustable from 1 (lowest) to 8 (highest), with an option to disable Ramp Mode: Adjustable Ramp Time with AutoRamp™ function Auto Start/Stop: Automatically begins therapy when breathing is detected and stops when therapy is not needed Leak Management: Vsync continuous leak management technology Ambient Light Sensor: Automatic screen brightness adjustment for minimal disturbance

Data Reporting: Up to 365 sessions of compliance data storage Detailed therapy data reporting for the last 30 sessions SD card included for easy data download Advanced data reporting available

Connectivity: Card-to-Cloud data transfer with AirView™ patient management system

Oxygen Compatibility: Compatible with up to 15 L/min of supplemental oxygen in S and CPAP modes, and up to 4 L/min in VAuto mode

TiControl Settings: TiMax: Maximum Inhalation Length TiMin: Minimum Inhalation Time Trigger: Inhalation trigger sensitivity level Cycle: Exhalation sensitivity level Noise Level: Operates at 26.6 dBA for a quiet sleep environment Display: Color LCD with easy-grip dial for navigation

Machine Dimensions: 10.04 inches (L) x 4.57 inches (W) x 5.91 inches (H) (255 mm x 116 mm x 150 mm)

Machine Weight: Approximately 2.75 lbs (1.25 kg)

Power Supply: AC 100-240V, 50/60 Hz, 1.0 - 1.5A, Class II

Power Cord Length: 6 feet (1.83 meters)

Max Altitude: 8500 feet (2591 meters)

DC Capable: Yes, for use with a DC power source

Battery Option: Yes, compatible with optional battery pack for portability

Auto Altitude Adjustment: Automatically adjusts therapy pressure for changes in altitude

Phone/Web App Available: Yes, for monitoring and adjusting therapy settings remotely

Warranty: 3 years

FAA Compliant: Yes, suitable for aviation travel
